“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

Product Categories
Tianjin Ironstar industry co,.Ltd
Contact Now

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

Brand Name : IRONSTAR

Model Number : 01

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : As Drawing

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 10sets/month

Delivery Time : 30-50days

Packaging Details : Tarpaulins and wooden cases

Raw material : Galvanized steel

Warranty : 3 Years

Export port : Tianjin port

Container : 20 feet container

Working days : 40 working days

Contact Now

Diameter of C channel roll forming machine

NO Type Specification
1 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 0.3-0.6 mm
2 Decoiler Operation Manual
Weight apacity 3 Tons
3 Main body Roller station 12 rows
Diameter of shaft 55 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 5.5*0.8*1 m
Machine weight About 1.8 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 30-50 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

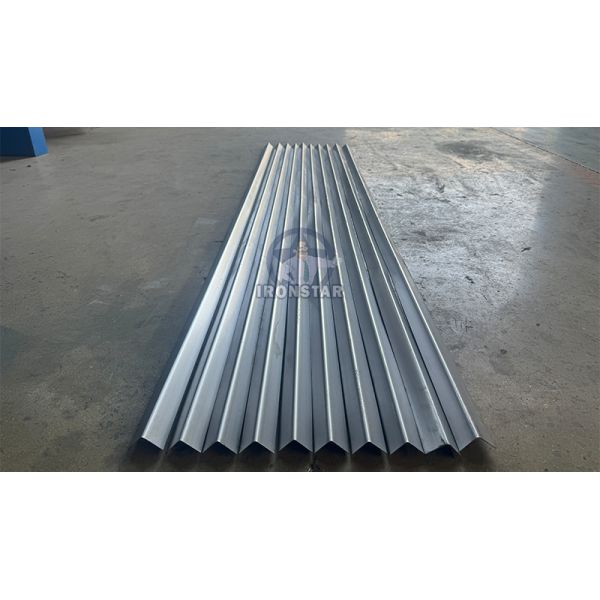

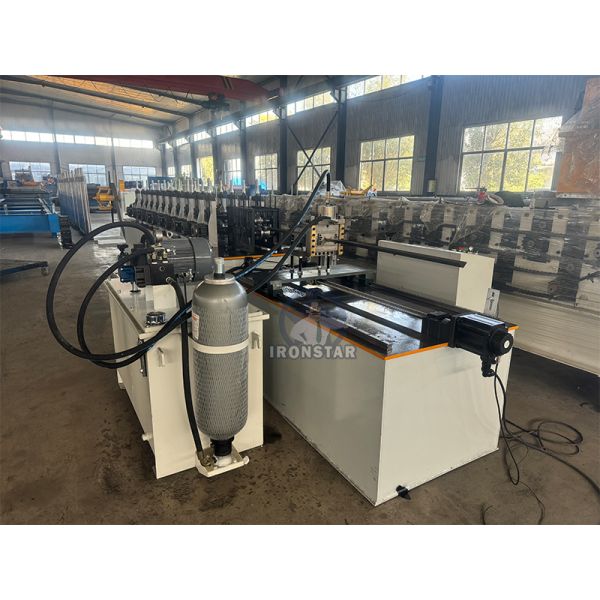

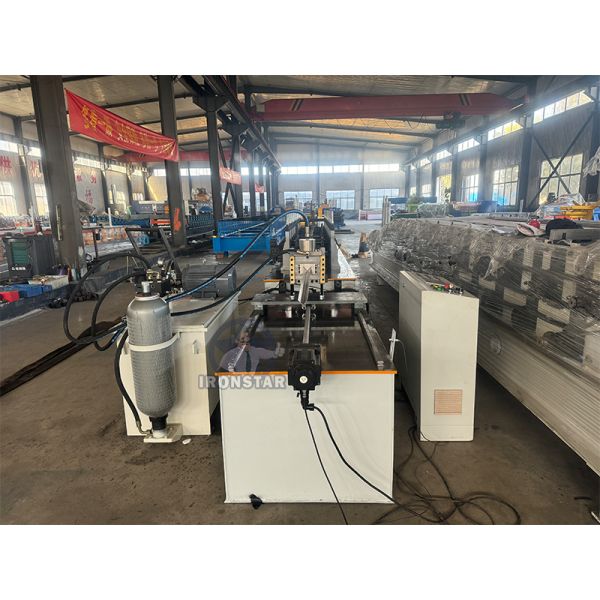

Product and machine show

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”

“50-70m/min High speed ceiling angle bead High quality 30*30mm angle bead roll forming machine”
